Part 3 - Rebuilding from scratch..

Now after recording every button of each of the remotes that you have, you need to Edit the ardumation_dummy_sketch program and upload to your Arduino Board just like you did previously.

Start assembling your components in the shown order....

1. The Arduino Board (I have Freeduino...)

2. The Arduino Bluetooth Shield..

3. Bluetooth Module (I have BTBee)

4. Combine the shield with the Arduino...

5. Add the Bluetooth module on top of the Bluetooth shield..

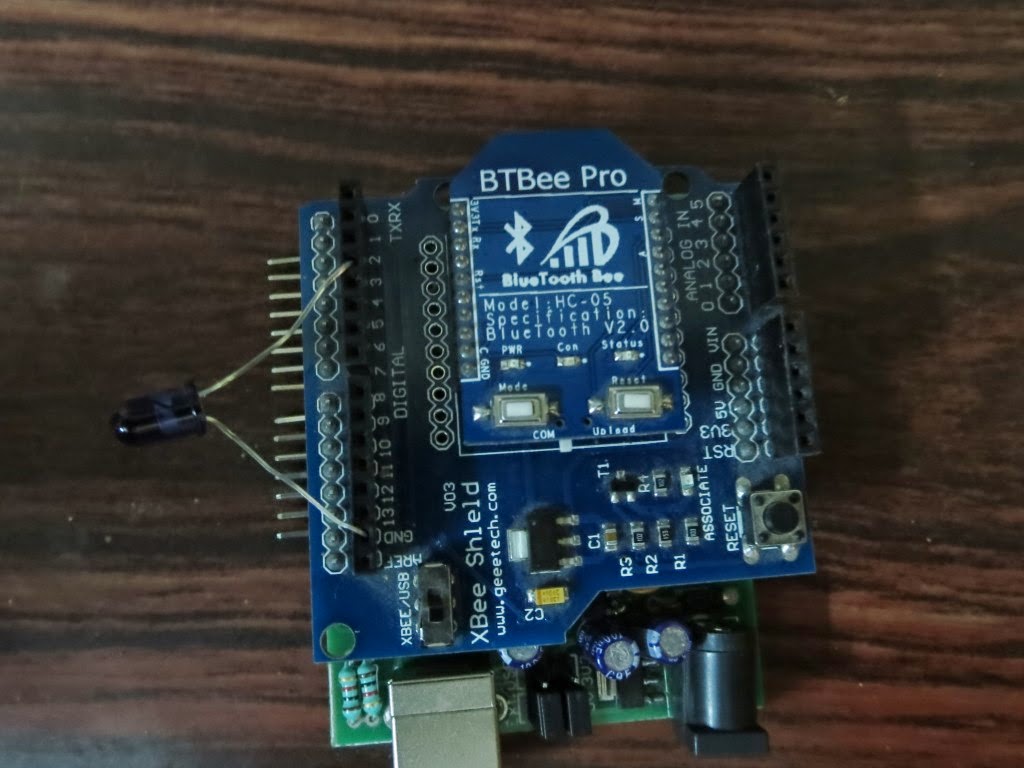

6. Now add a Infrared LED to the Bluetooth shield. Connect the positive(Long lead) pin on the LED to No. 3 pin (Pin 9 for Arduino Mega) and the negative(Short Lead) pin to the Ground.

7. Finally, connect the usb cable to the Arduino, and upload the program that you downloaded from Tech.Madmax.

Note : If you want to Upload any program to Arduino, be sure to remove Bluetooth module.

8. Connect the Relay module to the Arduino using jumper wires, connect the +5V, GND from Relay Module to the +5V and GND of the Arduino respectivly. Next connect the numbered leads to the Arduino's digital pins(2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13.)  in any order you like.
